CA-ZN STABILIZER CS-50
DESCRIPTION
CS-50 is one kind of Calcium-zinc based stabilizer. It is nontoxic, and it has good thermal stability, light stability, transparency and coloring power. CS-50 can be used for Profile, Pressure pipes, high calcium uses or other applications.
KEY PROPERTY
l Excellent thermal stability.
l No plate-out.
l Keep the primary colors.
l Outstanding weather-ability.
l Stable process ability and larger process window.
l No pollution to the environment.
l Endow your recipe with higher dosage of CaCO3 and make your recipe higher cost performance
PRODUCT INDEX
Item | Index |
Appearance | White powder |
Bulk density, g/cm³ | 0.4-0.5 |
Particle size (40 mesh sieve), ％ | ≥ 98.5 |
Melting temperature, ℃ | 90-150 |
PROPERTIES COMPARISON

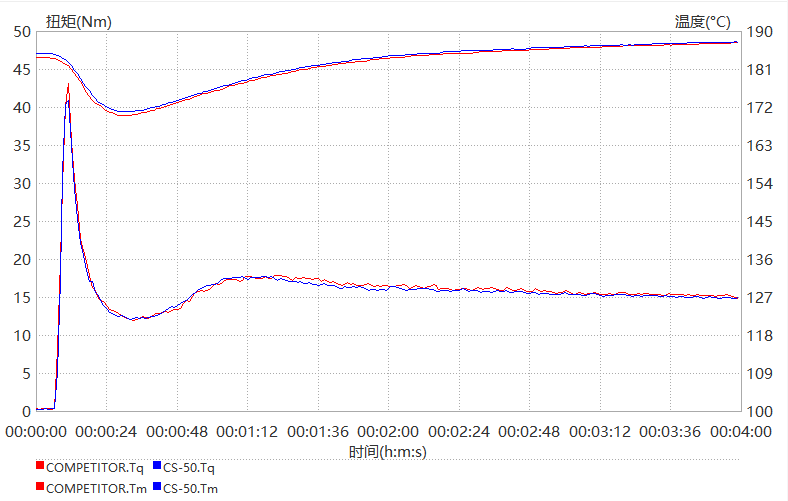

l Fusion property comparison
Test equipment type: RM-200C torque rheometer from Harbin Hapro Electrical technology Co., Ltd Volume: 60ml
Test conditions | 185℃ 35.5rpm | |
 | ||
|
| |
l Static stability at 200 ℃
Minutes | 10 | 20 | 40 |
CS-50 |  |  |  |
Competitor |  |  |  |
RECOMMENDED RECIPE
NO. | Item | Pressure pipe |
1 | PVC (K-65) | 100 |
2 | CaCO3 | 10 |
3 | Ca-Zn Stabilizer CS-50 | 2.5 |
4 | PE wax | 0.3 |
5 | TiO2 | 1.2 |
6 | Processing aid P-801 | 0.6-0.8 |
7 | Impact modifier | 1.5-2.0 |
RECOMMENDED APPLICATION
l Keep the original formula unchanged. The recommended dosage of CS-50 is 3~ 5 PHR.
l Adding Ca-Zn stabilizer CS-50 together with the PVC resin and other additives into the high-speed mixer.
l Keep the temperature at about 120-125℃ for 8 ~ 10minutes.
l Cooling down the mixed material to normal temperature.
l Move into extruders and start extrusion process.
² If you need to increase or decrease of CaCO3 content or want to adjust the lubrication system, please contact our technical service team by tech@pvcadd.com.
STORAGE
The product should be stored in cool and dry surroundings.
The shelf life is two years, it can be still used if qualified by inspection after shelf life.
PACKAGE
25kg/bag with PP bag or customized packaging according to customer requirements.
LOADING CAPACITY
For 20GP container, we can load 16mt with pallets or 18mt without pallets.
For 40HC container, we can load 28mt with pallets or 28mt without pallets.
